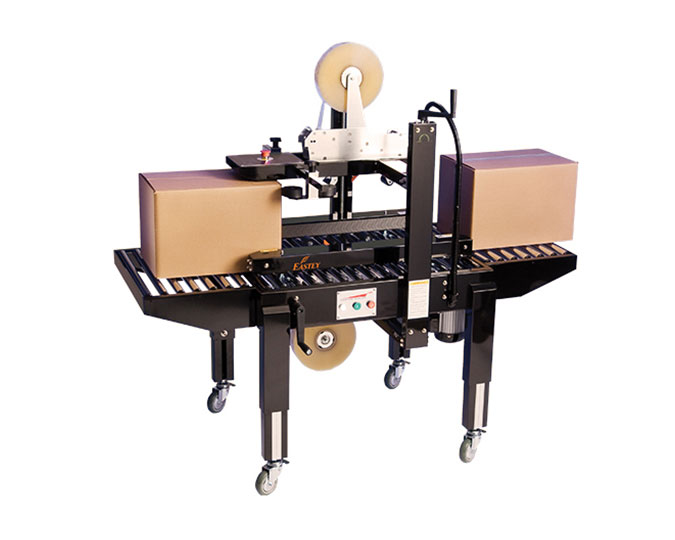

Eastey SB-2EX Side Belt
Case Sealing System
Take advantage of this system that includes side belts that are great for light or heavy weight, narrow or small boxes. It is ideal for void-fill cases where the packaged product does not support the box. The system's unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.
Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.
Capabilities & Features
Sealer Type – Side belt, top and bottom case sealer
Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability
Belt Speed – 75 feet/per minute
Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
Height Adjustment – Standard adjustable legs for 18.1" to 32.3" conveyor heights
Tape Size – 2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Drive Motor – Two (2) 1/4 HP drive motors
Electrical Requirements – 110 VAC, 60Hz, 4.0A
Agency Approvals – CE Certification
