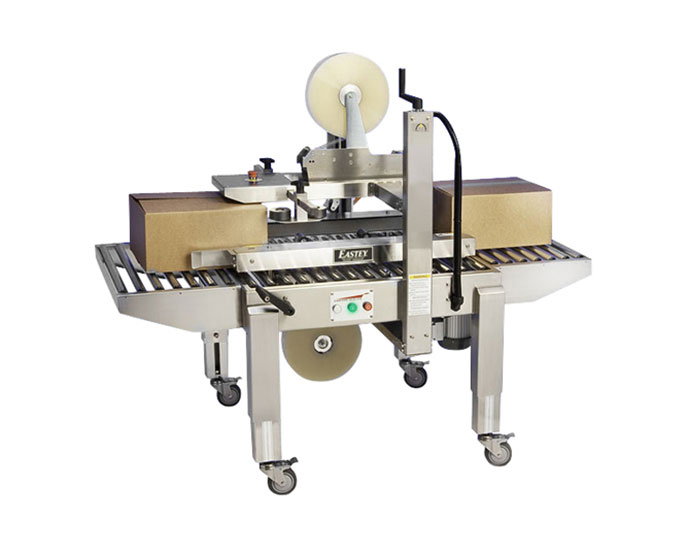

Eastey SB-2EX-SS Stainless Steel Side Belt Case Sealer

Eastey SB-2EX-SS

Stainless Steel Side Belt Case Sealing System

Take advantage of this system that includes side belts that are great for light or heavy weight, narrow or small boxes and ideal for void-fill cases where the packaged product does not support the box. The system's unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.

Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX-SS a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge stainless steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX-SS is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.

Capabilities & Features

Sealer Type – Side belt, top and bottom case sealer

Machinery Makeup – Industrial strength 12 gauge steel

Belt Speed – 75 feet/per minute

Tape Speed – 30 cases/per minute, depending on box size and operator efficiency

Height Adjustment – Standard adjustable legs for 18.1" to 32.3" conveyor heights

Tape Size – 2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges

Drive Motor – Two (2) 1/4 HP drive motors

Electrical Requirements – 110 VAC, 60Hz, 4.0A

Agency Approvals – CE Certification
