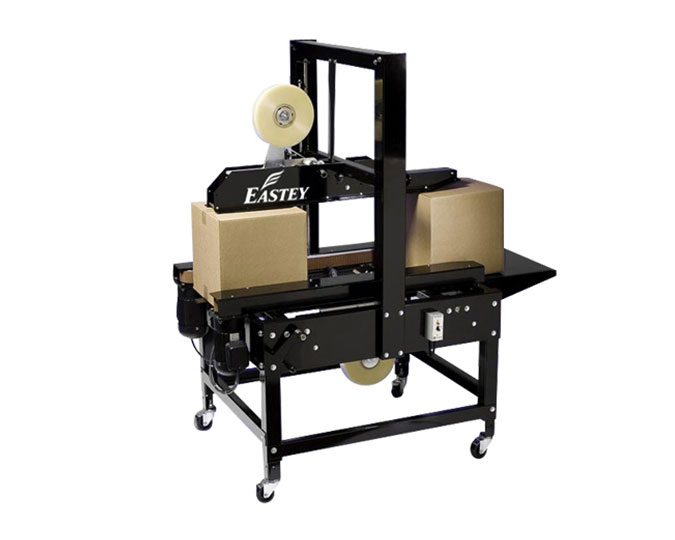

Eastey SB-2HD Side Belt Case Sealer

Eastey SB-2HD

Side Belt Case Sealing System

Take advantage of this system that includes side belts that are great for light or heavyweight, narrow or small boxes. The system is ideal for void fill cases where the packaged product does not support the box. SB-2HD is designed to handle boxes that most other case tapers can't. The system's unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.

Offers fast and easy case changes with adjustable side rails and flexibility for boxes 4.5" long and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. With the Easy-Taper Quick-Load top and bottom tape cartridges, easily seal boxes as narrow as 4" wide and as low as 2" tall, where most standard case tapers are only able to tape at a depth of 3" or greater. There is also an option to operate from left to right at no additional cost, and does not require air to run.

Capabilities & Features

Sealer Type – Side belt, top and bottom case sealer

Machinery Makeup – Industrial strength 12 gauge steel, powder coated for durability

Tape Speed – 30 cases/per minute, depending on box size and operator efficiency

Height Adjustment – Standard adjustable legs for 22.5" to 30.5" conveyor heights

Tape Size – 2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges

Air Requirements – None

Electrical Requirements – 110 VAC, 60Hz, 5.0A
