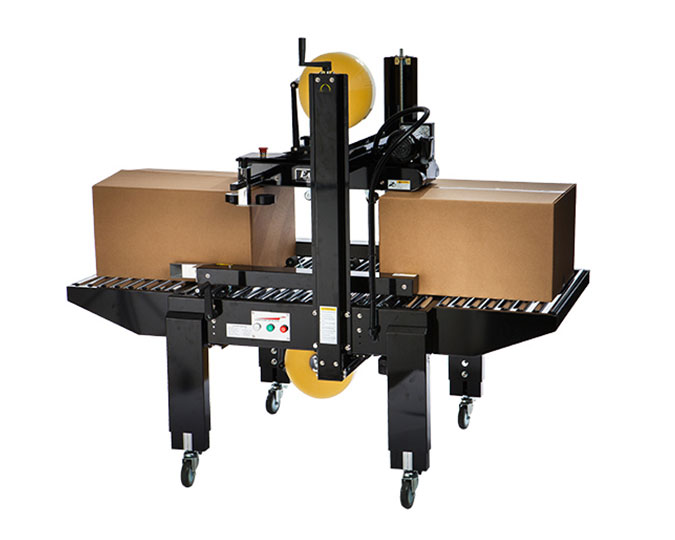

Eastey SB/TB-2
Side Belt & Top Belt Case Sealing System
The system's unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.
Offers fast and easy case changes and flexibility for boxes 4.75" in length and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. Utilizing the Easy-Taper Quick-Load, top and bottom tape cartridges and will seal boxes as large as 27.5" wide and as tall as 27.5", offering the user more options for their case taping operation.
Four drive belts work in unison to effectively move your cases through for a strong and consistent seal. Utilizes a dual mast with twin lead screws for greater tape head stability, and an adjustable side belt drive to center each case. The unit also features top compression rollers to stabilize the case and push the top flaps together, making it a great solution for over-filled and over-sized cases.
Capabilities & Features
Sealer Type – Side and top belt case sealer
Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability
Belt Speed – 75 feet/per minute
Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
Height Adjustment – Standard adjustable legs for 26.8" to 34.6" conveyor heights
Tape Size – 2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Drive Motor – Three (3) 1/4 HP drive motors
Electrical Requirements – 110 VAC, 60Hz, 4.0A
Agency Approvals – CE Certification
