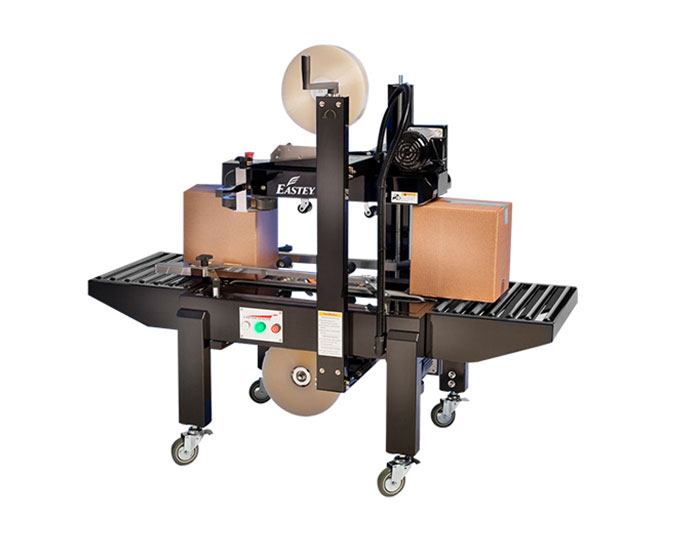

Top Belt & Bottom Belt Case Sealing System
The operator friendly top and bottom belt case taper is designed for large run case sealing. The top and bottom drives are ideal for tall and narrow uniform cases and heavier cases up to 85 lbs. No air is required to run so it can be placed anywhere in the plant.
Four drive belts work in unison to move your cases consistently through for a strong and consistent seal. Utilizes a dual mast with twin lead screws for greater tape head stability and adjustable side guides to center each case. The unit also features top compression rollers to stabilize the case and push the top flaps together, making it a great solution for over-filled cases. The system is designed to keep maintenance to a minimum and provide a fast and efficient alternative to hand taping.
TB-2 offers fast and easy case changes and flexibility for boxes 5" in length and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. Takes advantage of the Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 6.0" wide and as low as 4.5" tall.
Capabilities & Features
Sealer Type – Uniform top and bottom belt, top and bottom case sealer
Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability
Belt Speed – 75 feet/per minute
Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
Height Adjustment – Standard adjustable legs for 24.3" to 32.3" conveyor heights
Tape Size – 2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Air Requirements – None
Electrical Requirements – 110 VAC, 60Hz, 4.0A
Agency Approvals – CE Certification
