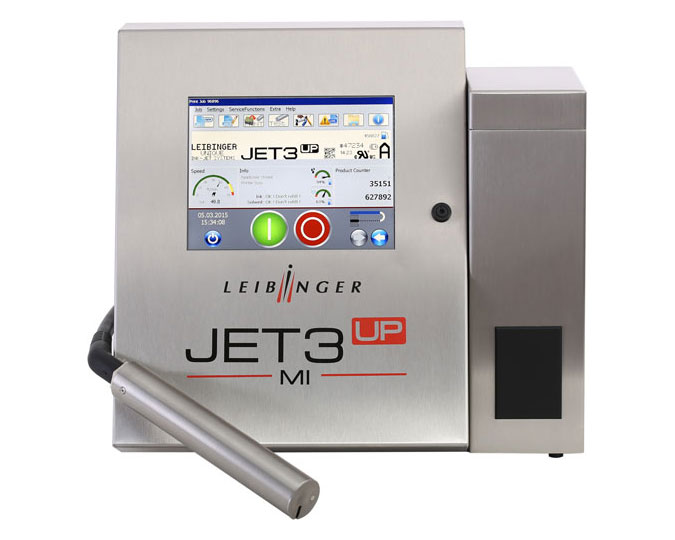

Leibinger JET3up MI Continuous Ink-Jet Printer

Leibinger JET3up MI

Continuous Ink-Jet Printer

A company has to ensure that all of its products are correctly marked to guarantee seamless tracking and to meet applicable legal requirements. However, this poses an enormous challenge for manufacturers that use a conventional inkjet coder when dealing with tiny products such as injectors, relays and wires. For technical reasons, these devices, which have an average nozzle size of 60 μm or 70 μm, cannot accurately print any text that is shorter than 1 cm.

Paul LEIBINGER noticed this problem and offers the JET3up MI inkjet coder as the solution. With a nozzle size of 35 μm or 40 μm, this printer is specially designed for coding especially small, thin lettering. The LEIBINGER JET3up MI is also perfect for applications that require printing a large amount of different information in a tiny space. The small, intricate labels created by the JET3up MI guarantee that the text is of a high quality and easy-to-read, even if the font height is short.

Capabilities & Features

35 µm or 40 µm nozzles delivering a font height of 0.7mm

Over 800 user-friendly functions

Up to 5-line texts can be printed

Sealtronic print head technology rids clogging and frequent head cleaning

Non-contact marking at up to 403 m/min

Height of the fonts: 5-32 drops

Windows-based touchscreen display for convenient operation

Multiple inks available

All software updates included
