Squid Ink CoPilot High Resolution Outer Case Coding

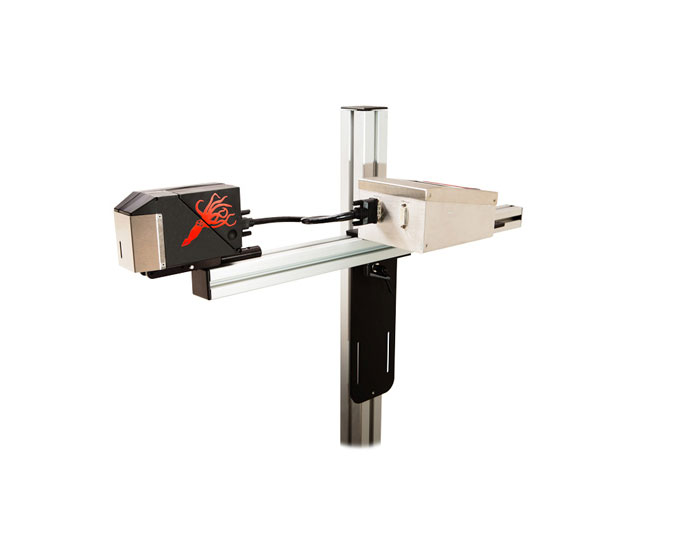

Squid Ink CoPilot

High Resolution Outer Case Coding

Squid Ink introduces the CoPilot printing system, a feature-rich hi-resolution printing system available at an entry level price. Squid Ink’s CoPilot printing system offers several advantages over competitive HP or Lexmark - based printing systems. With the CoPilot, users can expect 30% larger print, increased throw distance, approximately 5 times larger ink volume, the ability to upgrade to a 2nd printhead, and much more.

As the newest addition to Squid Ink’s growing family of marking and coding systems, the CoPilot gives users more choices for their coding applications. In addition, the CoPilot utilizes ink manufactured directly by Squid Ink, eliminating the high ink costs of HP or Lexmark systems. Any way you look at it, Squid Ink’s CoPilot provides users with an affordable solution to meet their ink jet coding needs.

Capabilities & Features

Print Technology - Piezo impulse printhead technology

Maximum Print Height -.7” (1.8 cm) per printhead

Vertical Print Resolution - 185 dpi capable of printing razorsharp graphics, small character text and scannable bar codes

Print Speed - Up to 135 feet/min. (41 m/min.) @ 205 dpi standard, optional high speed printhead up to 200 feet/min (60 m/min)

Time & Date - Internal real time clock with battery back-up

Product Sensor - External diffuse beam photocell standard

Touchscreen - 4.3” (10.9 cm) full color touchscreen display

Ink Cartridge Volume - 200ml

Low Ink Indicator - Message alert on touchscreen; LED light beacon optional

Substrate Capabilities - Porous or Non-Porous surfaces

Electrical Requirements - 100 - 240 VAC, 50/60 Hz

Operating Environment - 34°F - 104°F (1° - 40°C)
