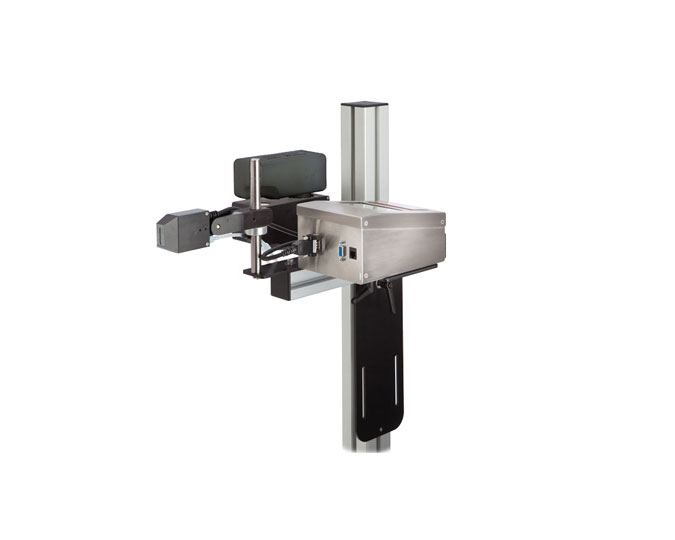

Squid Ink CoPilot 128 High Resolution Outer Case Coding

Squid Ink CoPilot 128

High Resolution Outer Case Coding

The CoPilot 128 ink jet printing system offers the durability, versatility and productivity that users have come to rely on from Squid Ink. Whether you are printing lot codes on coated cartons, bar codes on corrugate cases, or product information and logos on PVC pipe you’re sure to find the right solution with Squid Ink’s new CoPilot 128.

As one of the newest additions to Squid Ink’s complete line of marking and coding systems, the CoPilot 128 gives users more choices for their coding applications. Any way you look at it, Squid Ink’s CoPilot 128 provides users with an affordable solution to meet their ink jet coding needs.

Capabilities & Features

Print Technology - Piezo impulse printhead technology

Maximum Print Height -.7” (1.8 cm) per printhead

Vertical Print Resolution - 185 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes

Horizontal Print Resolution - 205 dpi Print Speed- Up to 135 feet/min. (41 m/min.) @ 205 dpi standard, optional high speed printhead up to 200 feet/min (60 m/min)

Time & Date - Internal real time clock with battery back-up

Product Sensor - External diffuse beam photocell standard

Touchscreen - 4.3” (10.9 cm) full color touchscreen display

Ink Cartridge Volume - 500ml cartridge or bag

Low Ink Indicator - Status alert on touchscreen, LED light beacon optional

Substrate Capabilities - Porous or Non-Porous surfaces

Operating Environment - 34°F - 104°F (1° - 40°C)
