SquidCheck Print Validation System

SquidCheck

Print Validation System

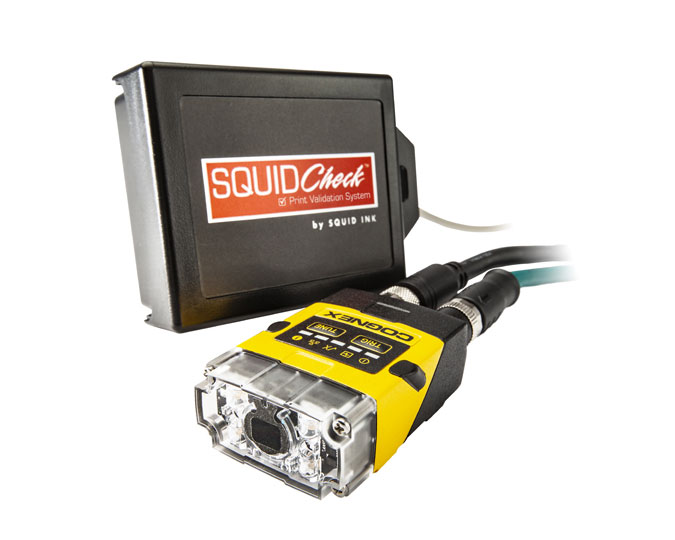

This system offers print and verification of the bar codes printed on your cases, trays, pipe, or other products and utilizes bar code readers from Cognex®, the world's most trusted machine vision and industrial bar code reading company. The reader is integrated with a Squid Ink printer and SquidCheck interface to ensure that codes are present, scannable, and accurate.

Capabilities & Features

Bar Codes – All standard including 2D

Image Resolution – 1280 x 960 global shutter

Image Sensor – 1/3" CMOS

Acquisition – 10 fps

Max Decode Rate – 10 decodes/second

Aiming LEDs – Two green LED focusing targets

Status Outputs – Light beacon, print verification status

Power Requirements – 100 – 240 VAC, 50/60 Hz

Communication – USB input to Squid Check I/O, ethernet to reader

Reader Dimensions Straight Position – 1.7"L x .9"W x 2.5"H (43.1mm L x 22.4mm W x 64.0mm H)

Reader Dimensions Right-Angle Position – 1.7" L x 1.4" W x 2.0" H (43.1mm L x 35.8mm W x 49.3mm H)

SquidCheck I/O Dimensions – 4.0" L x 3.0" W x 1.875" H (102mm L x 76mm W x 48mm H)

Operating Temperature – 32°F – 104°F (0°C – 40°C)

Storage Temperature – 14°F – 140°F (-10°C – 60°C)

Operating System – Windows 7 (32/64-bit), Windows 8, Windows 10, or Windows XP (32/64 bit)

Identify & Eliminate Failures From Your Production Line

Allows users to automatically take control of your packaging line. Once a code is printed, the reader reads the code while SquidCheck communicates with the printer to confirm that the correct code is to be printed. Code failures are identified and rejected as desired while SquidCheck safeguards that only correct and properly coded products advance to the next stage of your production line.

Capture Performance Data From Every Code

Performance data is captured, stored, and can be transferred to your business systems for evaluation or enhanced visibility. Users can receive images and feedback of each and every code, or just the errors as desired.

Analyze Print Data & Make Improvements

Gather valuable data on reader and printer performance, and automatically catalogue each code. By analyzing data trends, users can identify issues due to poor printer setup or maintenance and help improve their overall coding performance.
