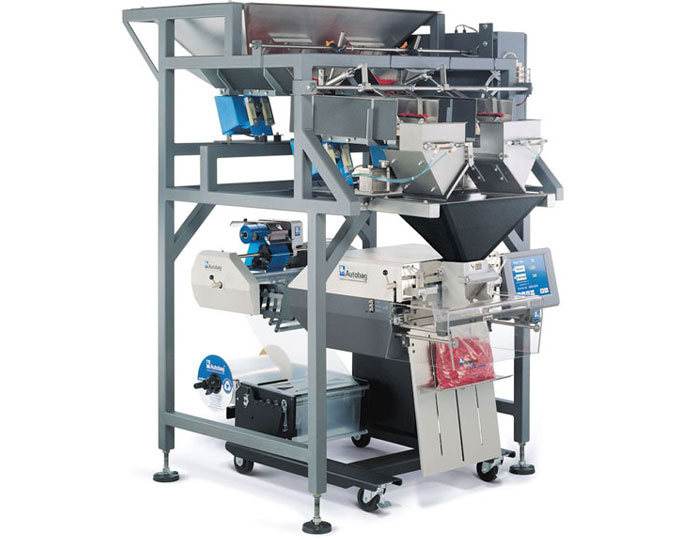

Autobag Linear Weigh Scale

Autobag® Linear Weigh Scale


Capable of weigh-counting at speeds up to 45 batches per minute, this vibratory linear pan-feed and weigh-count system was designed to be simple, dependable and flexible, ensuring maximum uptime and high-accuracy packaging. When used with the Autobag AB 180 or AB 255 bagging systems, a bulk supply of product is driven through a series of part-separating drive pans via vibration. Initially all flow control gates are open to allow 90 to 95% of the final weighment to be accumulated efficiently. When this pre-set weight is achieved the gates close, allowing only a single-flow to “dribble feed” into the batch until the final weight is achieved. The batch of product is then funneled to a pre-opened bag, sealed and dispensed while another bag is presented for loading.

Utilizing the latest technology, the Autobag Linear Weigh Scale can weigh-count batches from 1 ounce to 8 pounds. The system is available in single head to four head configurations based on required system speeds, with one to three pans for required product separation. Using system matched Autobag bags-on-a-roll offers a fast and effective Weigh-Count-n-Pack solution.

Capabilities & Features

Quick to set-up, easy to operate, reliable and fast

The combined Linear Weigh Scale & AB 255 bagger configuration has a small footprint— 5’ x 5’ —saving valuable floor space

Excellent accuracy-to-speed ratio for increased productivity

Available in Stainless Steel construction for a multitude of clean or washdown applications

Fully automatic, reducing labor costs and increasing productivity by up to 5 times the speed of hand load

Built-in Supply Hopper, product level detection, and dribble-feed combine to provide accuracy and productivity
