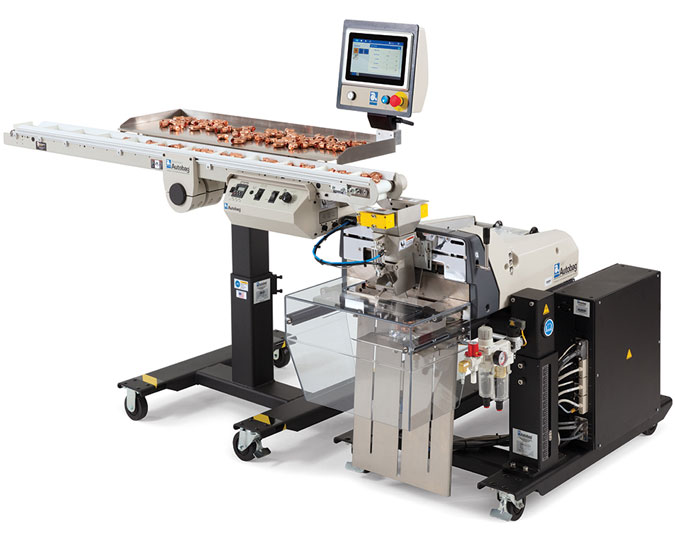

Autobag Maximizer Continuous Motion Conveyor

Autobag Maximizer Continuous-Motion Conveyor

Infeed

Capable of conveying and counting hand-placed items at speeds up to 50 batches per minute, this continuous motion, flighted conveyor has been designed to be simple to use, dependable and operationally flexible to double the productivity of hand load applications.

When used in conjunction with the Autobag® AB 180 bagging system, a bulk supply of product is placed on the product load tray, an operator will then retrieve the required product for each pack and place it into one of the Maximizer flights. The conveyor drives the product to a field eye detection load area where the conveyor dispenses the product through the eye and into an accumulator funnel. The individual batch of product is then funneled to a pre-opened bag at which time the bag is sealed and dispensed while another bag is presented for loading. Utilizing the very latest technology, the Autobag® Maximizer is capable of detecting and counting product from 1/4” to 5.5” in length and up to 3” in width.

Capabilities & Features

Reduces labor cost while doubling packaging throughput, providing higher packaging productivity with fewer operators

The ideal system for hand load kit packages and subassemblies, giving operators control of the system speed rates

Simple Eye Detection system allows changeover from product to product to be instantaneous

Can be integrated with simple robotics providing integrated, efficient packaging of at-site assembled product

Quick to set-up, easy to operate, reliable and fast

See it in Action
