Squid Ink AutoPilot High Resolution Outer Case Coding

Squid Ink AutoPilot

High Resolution Outer Case Coding

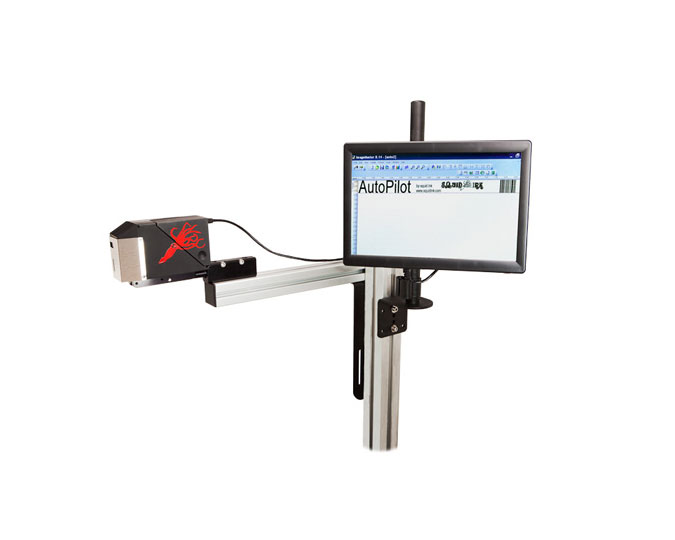

Squid Ink introduces the AutoPilot printing system, a feature-rich hi-resolution printing system available at an entry level price. Squid Ink’s AutoPilot printing system offers several advantages over competitive HP® or Lexmark® based printing systems. With the AutoPilot, users can expect 30% larger print, the ability to upgrade to a 2nd printhead, message programming via touchscreen user panel, the ability to print bar codes with standard systems, the ability to print on a variety of porous and non-porous surfaces, and much more.

Whether you are a seasoned pro, or if you have wanted to start printing high quality codes on your products, but felt your budget restricted you from doing so, the AutoPilot offers a new level of economy. In addition, the AutoPilot utilizes ink manufactured directly by Squid Ink, eliminating the high ink costs of HP® or Lexmark® systems. Any way you look at it, Squid Ink’s AutoPilot provides users with an affordable solution to meet their ink jet coding needs.

Capabilities & Features

Print Technology - Piezo impulse printhead technology

Maximum Print Height - .7” (1.8 cm) per printhead

Print Speed - Up to 135 feet/min. (41 m/min.) @ 180 dpi

Time & Date - Internal real time clock with battery back-up

Touchscreen - 12.1” (30 cm) full color touchscreen display

Ink Cartridge Volume - 200ml

Integrated Ink System - Allows mechanical rotation of printhead to accommodate tilt conveyors or web applications; 0-90 degrees counterclockwise

Low Ink Indicator - LED on printer and message alert on touchscreen, LED light beacon optional

Substrate Capabilities - Porous or Non-Porous surfaces
