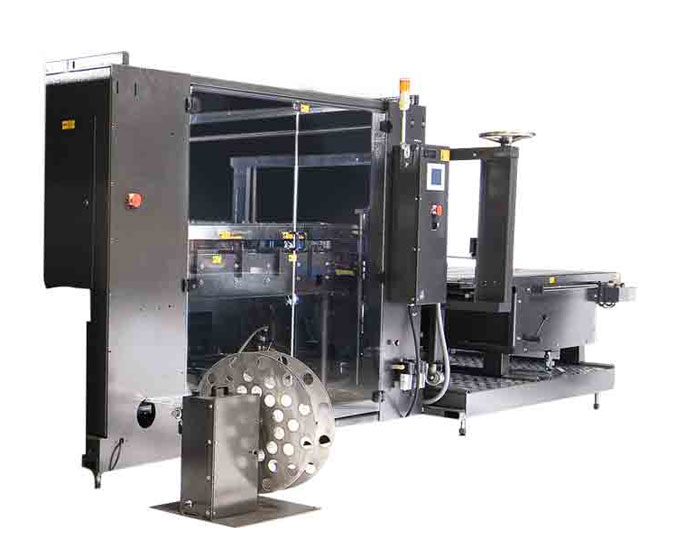

Eastey Professional Series Automatic L-Bar Sealers

Eastey Professional Series Automatic L-Bar Sealers

Shrink Wrap System

Proven reliable over and over again, EASTEY's Automatic L-Sealers provide you with all the quality features found in much higher priced machines. They are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC.

Designed specifically for large or heavy products that need to be fully enclosed, EASTEY Professional Series Automatic L-Sealers are constructed of expertly welded 1/4 cold rolled steel and designed to handle the day to day abuse of even the most challenging automatic sealing applications. The efficient automatic self-centering seal system allows users to automatically seal product that is placed on the infeed conveyor for a consistent seal every time.

EA3050TK, EA3070TK, EA30100TK, EA4050TK, EA4070TK, EA40100TK, EA5050TK, EA5070TK, EA50100TK

Capabilities & Features

Designed to seal most polyolefin, polyethylene, and PVC shrink films

All-welded main frame from ¼" cold rolled steel

Soft start infeed and outfeed conveyors to reduce shifting of products

Variable speed infeed and outfeed conveyors

Side adjustable film rack for perfect alignment

Seal head casting equipped with pneumatic air cylinder for automatic sealing

Hot knife seal available with mushroom (standard), pancake, arrow, or poly inserts

Consistent pressure across seal bar

Automatic cycle timing with adjustable dwell time

PLC controlled with product indexing

Film tracking wheels keep film in place

Power film unwind ensures proper tension of film

Multiple pin perforators provide air evacuation

Power Film take-up scrap winder included

Custom two-part epoxy finish resists scratching

Heavy-duty casters for transportation within a plant

Easy to use design requires minimal training and maintenance

Side seal size 30", 40" or 50"; front seal size 50", 70", or A100"

Maximum film width up to 60"

Maximum film roll OD up to 12"

See it in Action
