Shanklin Semi Automatic L Bar Sealers: S24B & S24BL

Shanklin Semi Automatic L Bar Sealers: S24B & S24BL

Shrink Wrap System

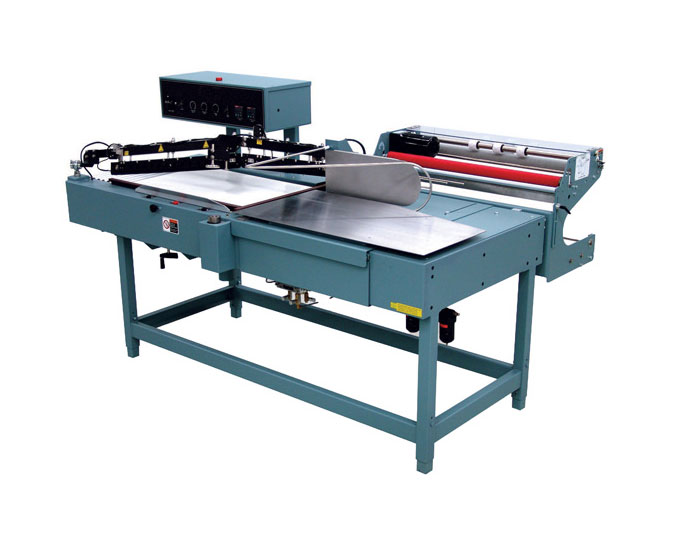

The Shanklin Model S24B/S24BL L-Frame Sealer is high production semi-automatic wrapping machine. Features of the machine include a 3-point sealing arm suspension with air-magnetic latching, fool-proof arm safety, a precisely controlled heat sealing cycle and a timer-controlled dis-charge conveyor. Electrical relays are mounted on a U.L. listed panel located behind the easy-to-reach control panel which provides accurate heat for consistent seal. For operator convenience, the unit is equipped with telescoping legs.

Higher production speeds are achieved with the Model S24B/S24BL because it includes several unique features normally found only on our fully automatic L-Sealers; namely, the power film unwind and the film inverting head. The power film unwind permits a free feeding of the film, thus increasing operator efficiency. In addition, better seals (fewer rewraps) are obtained because the film in the seal area is always loose.

Capabilities & Features

Automatic sealing cycle

Power film unwind

Easy loading film inverting head

Left-to-right or right-to-left product flow

Easy access electrical controls

Automatic package discharge

Brush backed pin perforator

Hot knife seal system
