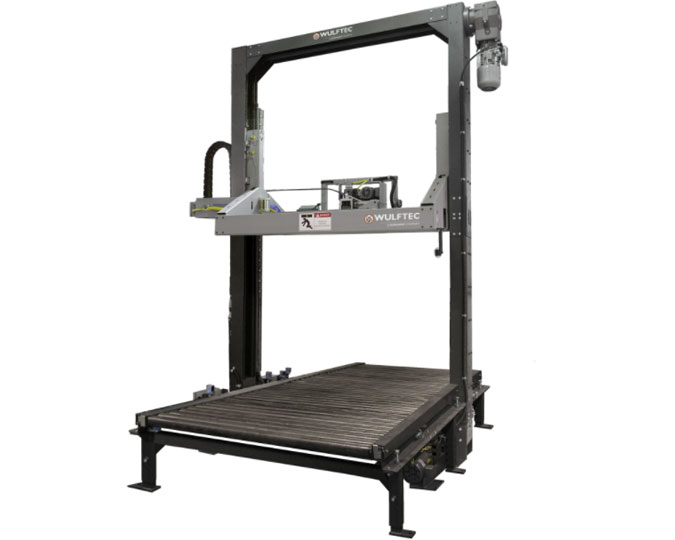

Wulftec VarioMaster 9460

Wulftec VarioMaster 9460

Strapping Machine

Automatic high performance strapping machine for full pallet loads. For integration in powered conveyor line. The strapping head is positioned horizontally above the load and, as part of the strapping cycle, will be lowered towards the load to be strapped. The bottom section of the strapping arch can be a standard undertrack style, or an electric motor driven pallet bayonet for "through-pallet" strapping, or a combination of both.

Wulftec offers the best warranty in the industry:

  • 1-year on the strapping head and track
  • 3-year unlimited cycle warranty
  • 3-years on the steel structure

Capabilities & Features

Production rate of 100 loads per hour

Portal size to allow max load size of 50" wide x 80" high

3 HP AC gear motor with Allen Bradley Powerflex 525 AC drive

Photoeyes are maintenance free and protected

NEMA 4/12 control panel dust tight and waterproof

User friendly touch screen offers a simple yet effective way to adjust and maintain your equipment

High speed dispenser with pulley block accumulation system and electrical brake that can fits standard coils of PET strapping with a core diameter of 16" and a width of 6".

The bottom section of the strapping arch can be a standard undertrack style or an electric motor driven pallet bayonet for "through-pallet" strapping or a combination of both.

Up to 8 straps per minute may be applied, depending on strapping arch and package dimensions, strap quality and strap tension required.

Electronic tension control through a variable frequency drive. Assures consistent tension control regardless of the number of cycles and environmental conditions.

Coils of PET strapping with a core diameter of 16″ can be fitted to the high speed dispensers, with pulley block accumulation system and electrical brake.

Controls

  • Allen Bradley CompactLogix L16ER PLC
  • Allen Bradley PanelView Plus 7 6" color Touch Screen Interface
  • 24V control system
  • Current overload protection
  • NEMA 4/12 control cabinet
  • Autoheight sensing photoeye
  • Power on/off lockable switch and indicator light
  • 460VAC motor and contactor
  • Two emergency stop stations (1 on panel / 1 on the platen)
  • Manual function for strapping head and conveyors
  • Intuitive alarms diagnostic on touch screen
  • Machine and head cycle counter
  • Reset function
  • Strap track with under track configuration to allowing under pack strapping
  • 2 fully adjustable strapping patterns
  • 4 communications I/O signals with upstream & downstream system
  • Allen Bradley PowerFlex 525 drive, 460VAC
  • Allen Bradley series 100 contactor
  • Alarm beacon
  • 120 VAC outlet in control panel for service work

GT41 N Strapping Head

  • By changing the optional entry and exit guide the head have the ability to strap with polyester (PET) from 3/8 to 5/8 wide and .020 minimum thick strapping.
  • Consistently reproducible strap tensioning through an Allen Bradley PowerFlex 70 VFD and torque motor control
  • Consistently high seal efficiency
  • Environmentally favorable sealing by vibration welding
  • Separate drive section for high speed strap feeding and take up and to achieve maximum tension levels
  • Electronic strap circulation control
