Wulftec LMB-250 Strapping Machine

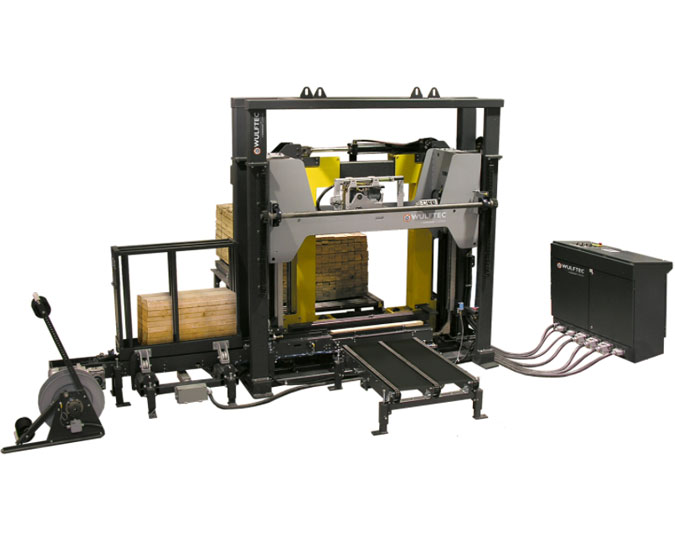

Wulftec LMB-250 Lumber Press

Strapping Machine

The LMB-250 Lumber Press is specifically tailored to the lumber and panel Industries. The hydraulic compression strapping system design facilitates maintenance and operation. Top and side compression ensures stable, tight loads that will retain high tension during transportation. The LMB-250 Lumber Press is easily integrated into existing production lines to create a seamless packaging system.

Wulftec offers the best warranty in the industry:

  • 1-year on the strapping head and track
  • 3-year unlimited cycle warranty
  • 3-years on the steel structure

Capabilities & Features

NEMA 4/12 control panel dust tight and waterproof

Allen Bradley MicroLogix PLC and AC drives

All motors, proximity sensors, photoeyes and other sensors have quick disconnect cables that simplify installation and maintenance

Photoeyes are maintenance free and protected

User friendly touch screen offers a simple yet effective way to adjust and maintain your equipment

Up to 8 straps per minute may be applied, depending on strapping arch and package dimensions, strap quality and strap tension required

Coils of PET strapping with a core diameter of 16″ can be fitted to the high speed dispensers, with pulley block accumulation system and electrical brake.

Minimum Load Size: 32" W x 15" H
Maximum Load Size: 58" H x 60" W

Controls

  • Allen Bradley CompactLogix L24 PLC
  • Allen Bradley PanelView Plus 600 monochrome Touch Panel
  • 24V control system
  • Current overload protection
  • NEMA 4/12 control cabinet with quick disconnect
  • Sick autoheight sensing photoeye with on/off mode
  • Power on/off lockable switch and indicator light
  • 460VAC motors & variable frequency drives
  • Allen BradleyPowerFlex 525
  • Two emergency stop stations (1 on panel / 1 on platen)
  • Manual function for platen up/down and conveyor fwd/rev
  • Variable compression settings
  • Intuitive alarms diagnostic on touch screen
  • Machine and head cycle counters
  • Reset function
  • Strap track with under track allowing under pack strapping
  • 2 fully adjustable strapping patterns
  • Alarm beacon
  • 120 VAC outlet in control panel for service work

Strapping Head

  • GS41 HT strapping head
  • Possibility to strap with polyester from 3/8" to 5/8" wide
  • Consistently reproducible strap tensioning through an Allen Bradley Powerflex 70 VFD
  • Tension control with motor torque monitoring via the drive
  • Tension is adjustable on the HMI
  • Consistently high seal efficiency
  • Environmentally favorable sealing by vibration welding
  • Separate drive section for high speed strap feeding and take up to achieve maximum tension levels
  • Electronic strap circulation control
  • Accurate tension alignment of the strap
  • Precise and quick adjustment by automatic strap feeding unit

Top & Side Compression

  • Hydraulic compression pads for greater consistency and reliability
  • Compression controlled with pressure regulator on hydraulic units and pressure switch. Separate regulation for top and side compression
  • Compression speed controlled by flow regulator on hydraulic unit
  • Side compression using an oversized dual rack and pinion equalizer system
  • Maximum compression up to 25,000 lbs

See it in Action
