Autobag Data Count U-162 Infeed System

Autobag® DATA Count U-162

Infeed

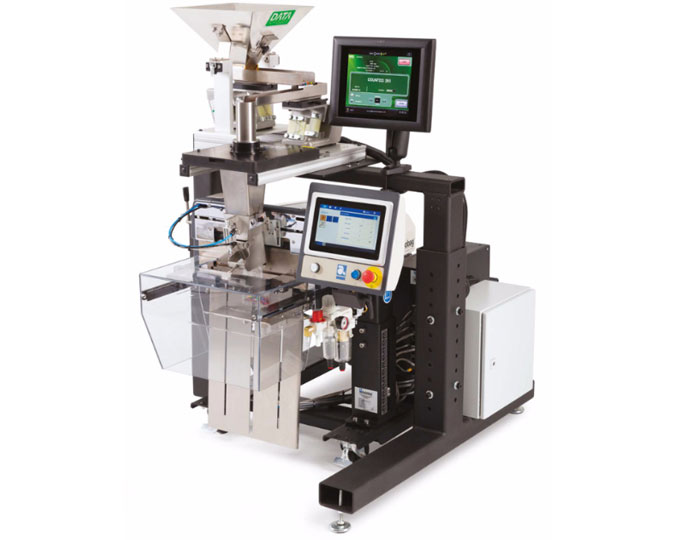

The DATA Count U-162 Counter integrated with the Autobag® 500 bagger is specifically engineered to fully automate the high-speed counting and packaging of bulk small products. It is a compact, flexible and cost-effective system designed with advanced counting technology from DATA Technologies and innovative product engineering from Automated Packaging Systems.

Capable of counting up to 25,000 objects per minute, this hopper and vibratory feed track system uses an advanced mathematical algorithm to ensure high levels of accuracy. Utilizing the very latest technology, the DATA Count U-162 is capable of detecting variable shaped products from 0.5 – 25mm in size.

When used in conjunction with the Autobag 500 bagging system, a bulk supply of product is driven down the feed tracks and into a state-of-the-art vision-based system, where it is automatically counted to a pre-set quantity. The counted product is then funneled to a pre-opened bag, sealed and dispensed, while another bag is presented for loading.

Capabilities & Features

Fast processing time enables more products to be packaged per shift

Compact footprint minimizes floor space

Press the auto set-up function, and the counting system will automatically calibrate the item for accuracy

Table Counting Mode – Enables user to import spreadsheet containing multiple job parameters for short-run and frequent changeover applications
